Ripple Carry Adder

A ripple carry adder is an arithmetic circuit which adds two N-bit binary numbers and outputs their N-bit binary sum and a one bit carry.

We can build a N-bit ripple carry adder by linking N full adders together. Each full adder is used to generate the sum and carry bits for one bit of the two inputs. The full adder for the least significant bit has a carry input of 0. All of the other full adders have their carry input wired to the carry output of the full adder which deals with the immediately less significant input bits. The carry output of the full adder dealing with the most significant input bits becomes the carry output of the ripple carry adder. The sum outputs of the N full adders forms the ripple carry adder's N-bit sum output. The name "ripple carry" comes from the fact the the carry ripples from one full adder to the next.

Verilog

The following Verilog code shows a 4-bit ripple carry adder. The code for the full adder is also shown for completeness.


module ripple_carry_adder(S, C, A, B);
   output [3:0] S;  // The 4-bit sum.
   output 	C;  // The 1-bit carry.
   input [3:0] 	A;  // The 4-bit augend.
   input [3:0] 	B;  // The 4-bit addend.

   wire 	C0; // The carry out bit of fa0, the carry in bit of fa1.
   wire 	C1; // The carry out bit of fa1, the carry in bit of fa2.
   wire 	C2; // The carry out bit of fa2, the carry in bit of fa3.

   full_adder fa0(S[0], C0, A[0], B[0], 0);    // Least significant bit.
   full_adder fa1(S[1], C1, A[1], B[1], C0);
   full_adder fa2(S[2], C2, A[2], B[2], C1);
   full_adder fa3(S[3], C, A[3], B[3], C2);    // Most significant bit.
endmodule // ripple_carry_adder

module full_adder(S, Cout, A, B, Cin);
   output S;
   output Cout;
   input  A;
   input  B;
   input  Cin;

   wire   w1;
   wire   w2;
   wire   w3;
   wire   w4;

   xor(w1, A, B);
   xor(S, Cin, w1);
   and(w2, A, B);
   and(w3, A, Cin);
   and(w4, B, Cin);
   or(Cout, w2, w3, w4);
endmodule // full_adder

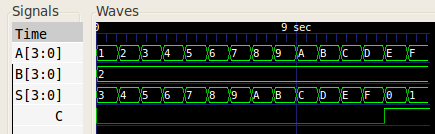

When given test inputs, the 4-bit ripple carry adder generated the following waveform:

References

Mano, M. Morris, and Kime, Charles R. Logic and Computer Design Fundamentals. 2nd Edition. Prentice Hall, 2000.
